3D Scanner


   bilde


With our 3D Scanner we can create accurate 3D models of your products.

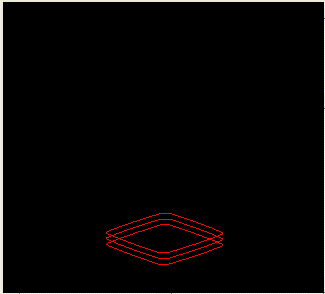

The 3D Scanner is based on multiple Laser Triangulation Profiles working in a common 3D coordinate system with the highest accuracy. A scan is fast and creates models with a resolution down to 0.01 mm. Combining Scorpion, Firewire Cameras, Lasiris Lasers with Sony Desktop Robots and Toshiba Machine's Cartesian Robots objects up to 1000 x 1000 x 500 mm can be measured. To the right an animation of the 3D model creation is shown.



The concept creates unique opportunities in 3D measurement and OEM applications.

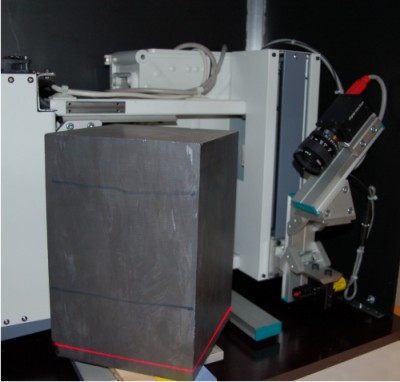

Below a Silicon Wafer Block for 156x156 mm solar cell wafers is scanned with a resolution of 0.01 mm.



























































Sample Application - Video: 3D Wafer Block Scanner 14 MByte
